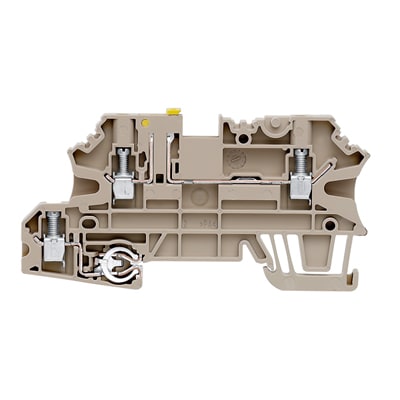

Weidmuller - WMF 2.5 DI PE - 1143030000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...4 mm²

Rated current In:

20 A

Type of electrical connection 1:

Screw connection

Type of slitting:

Swivelling

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...2.5 mm²

Connectable conductor cross section solid-core:

0.5...4 mm²

Connectable conductor cross section multi-wired:

1.5...4 mm²

Rated voltage:

500 V

Number of levels:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Operation temperature:

-50...120 °C

Width:

5.08 mm

Depth:

88 mm

End plate required:

yes

Colour:

Beige

Type of cross disconnection:

None

With integrated test socket:

no
